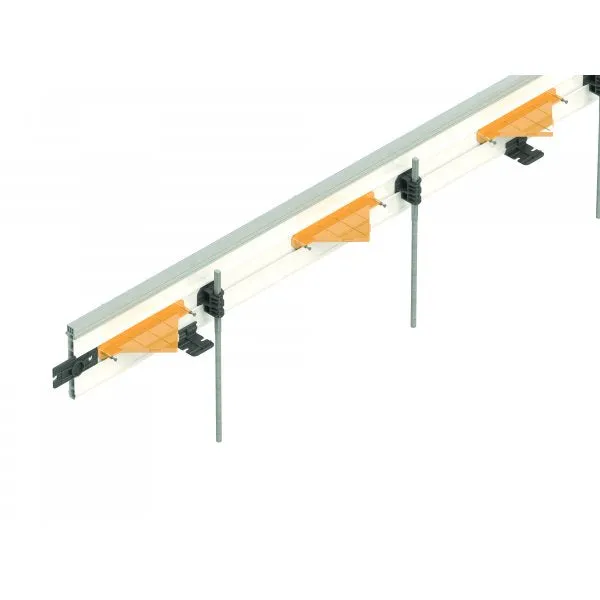

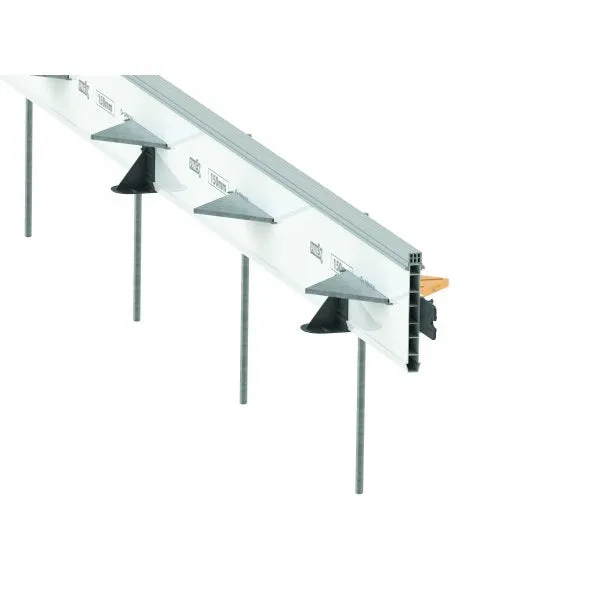

PaveX™ Expanda™ HD is a core component of the broader PaveX™ Residential Pavement eco-system. Designed specifically for use in heavy duty residential pavement applications including service vehicle cross-overs, driveways, shared bikeways and urban streetscapes. PaveX™ Expanda™ HD is a lightweight, modular expansion joint system that is quick & easy to install.

Designed for use with 6mm Danley™ Diamond™ Galvanised Dowels & Sleeves at 450mm centres, PaveX™ Expanda™ HD provides high capacity load transfer between pavement sections, to the requirements of AS 3727.1:2016 Residential Pavements.

The unique design of the uPVC extruded PaveX™ Expanda™ HD 150mm sacrificial formwork profile provides up to 10mm of thermal expansion of concrete and is job site tough.

Features:
- Complies with the requirements of AS 3727.1:2016 Residential Pavements.
- Corrosion-free, uPVC 150mm formwork profile extruded to 3 metres in length.
- Supplied in a Set - 15 lineal metres of joint, complete with all PaveX™ components.
- Expanda™ HD is designed for use with 6mm Danley™ Diamond™ Galvanised Dowels & Sleeves at 450mm centres. Diamond™ Dowels are sold separately.
- PaveX™ Expanda™ joint formwork provides for 10mm thermal expansion of concrete.
- Innovative formwork channel engages the stake bracket, dowel sleeves and joiner.
- Twist-n-Lock stake bracket for levelling of formwork.
- Joiner doubles as a stake tool.
- Clip-on feet help position and support the formwork during installation & pour.
- Formwork supplied with pre-fitted, stay-in-place capping.
- PaveX™ Expanda™ HD load supporting capping features a removable strip if joint fillers are specified.
